DYA441

Categories:

Description

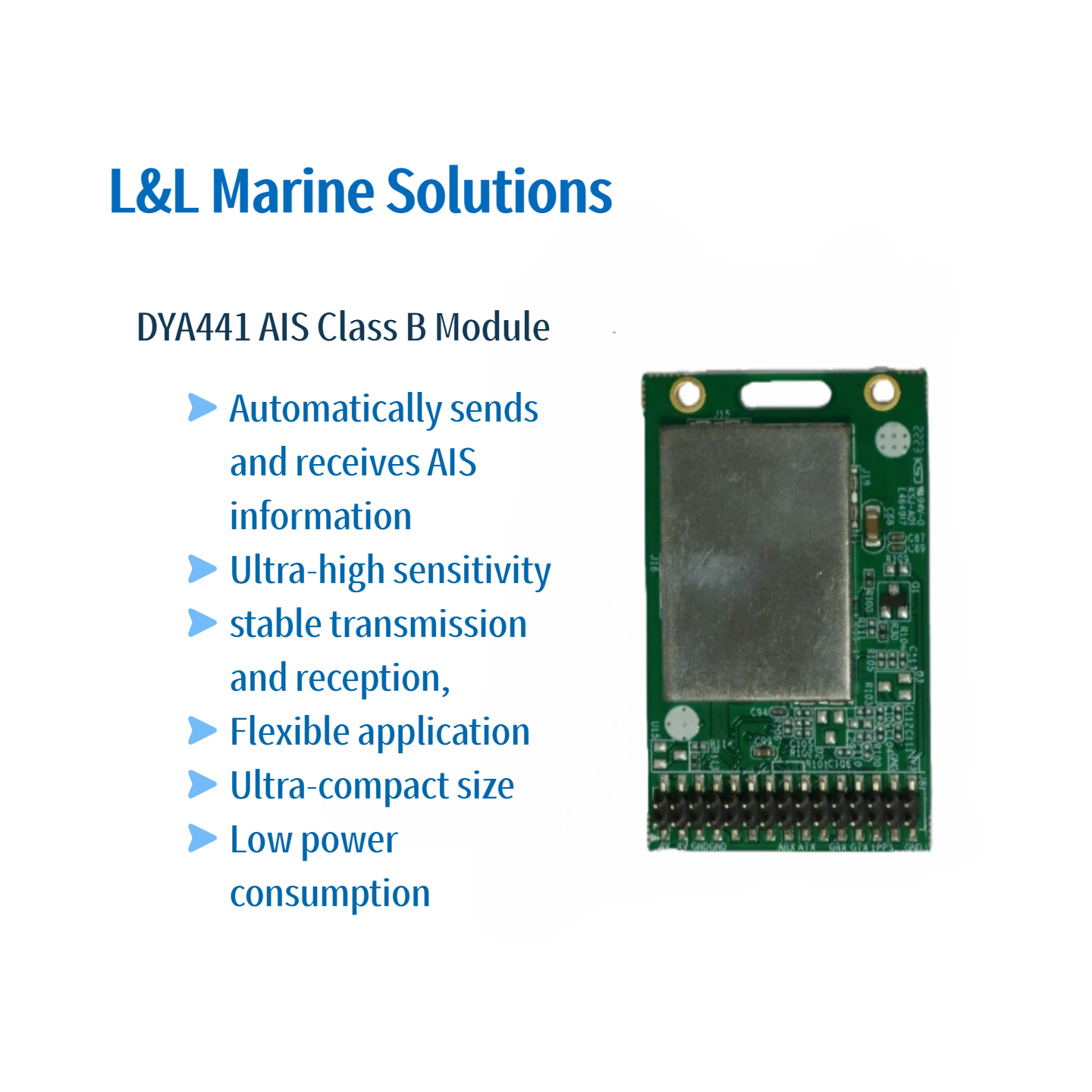

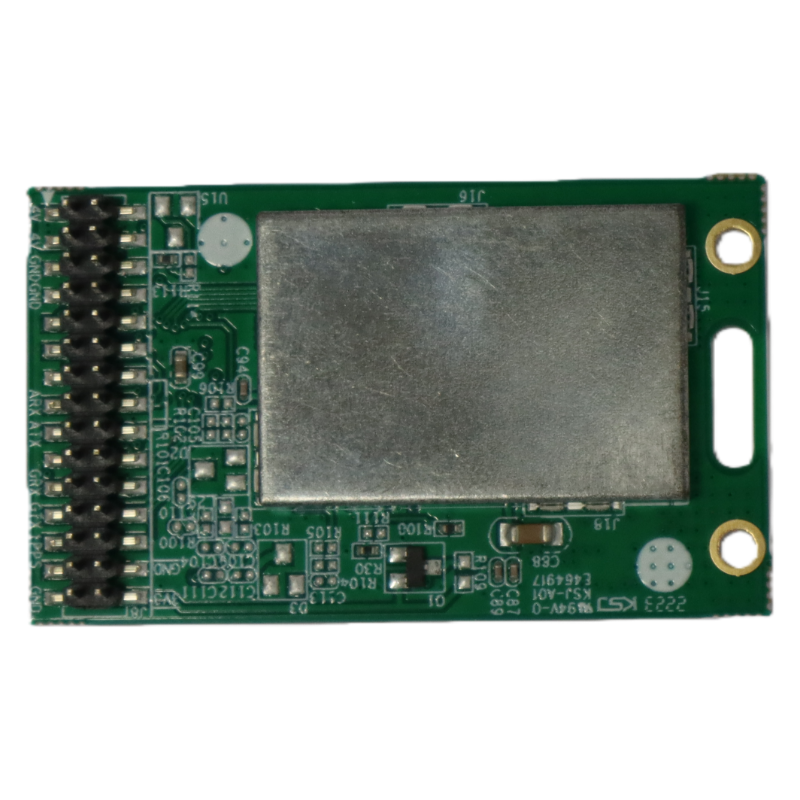

The DYA441 is an AIS Class B terminal module based on the Automatic Identification System (AIS). Using the DYA441 module for communication, users can focus on the application without concerning themselves with the AIS network, achieving rapid development.

The DYA441 device can automatically send and receive AIS information and is configured and used via a serial port. It features ultra-high sensitivity, stable transmission and reception, flexible application, low power consumption, and a small size, making it easy to embed into mobile devices.

Specification

 KEY SPECIFICATIONS



Parameter Description
Transmit/Receive Frequency AIS Channel 1: 161.975MHz
AIS Channel 2: 162.025MHz
Modulation GMSK
Modulation Rate 9.6Kbps
Transmit Power 33dBm ± 1.5dBm
Receiver Sensitivity Better than -115dBm
Power Supply 3.5V ~ 4.2V
Typical supply voltage: 4V
Power Requirements Maximum pulse current not less than 2A
Power Consumption Transmit state: Peak current 2A
Receive state: 60 ± 10mA
Debug Serial Port 3.3V TTL level
For software debugging, baud rate 38400
GNSS Serial Port 3.3V TTL level
Supports receiving GNSS module information, baud rate 9600
GNSS Interface Level 3.3V TTL level
Antenna Interface I-PEX connector
Antenna Interface Impedance 50Ω characteristic impedance
Temperature Range Operating temperature: -25℃ ~ +70℃
Storage temperature: -30℃ ~ +80℃
Logic Level Parameters VIL (Input Low) Max = 0.8V
VIH (Input High) Min = 2.0V
VOL (Output Low) Max = 0.4V
VOH (Output High) Min = 2.4V





Documents

DYA441 Hardware Design Manual English
